Descripción

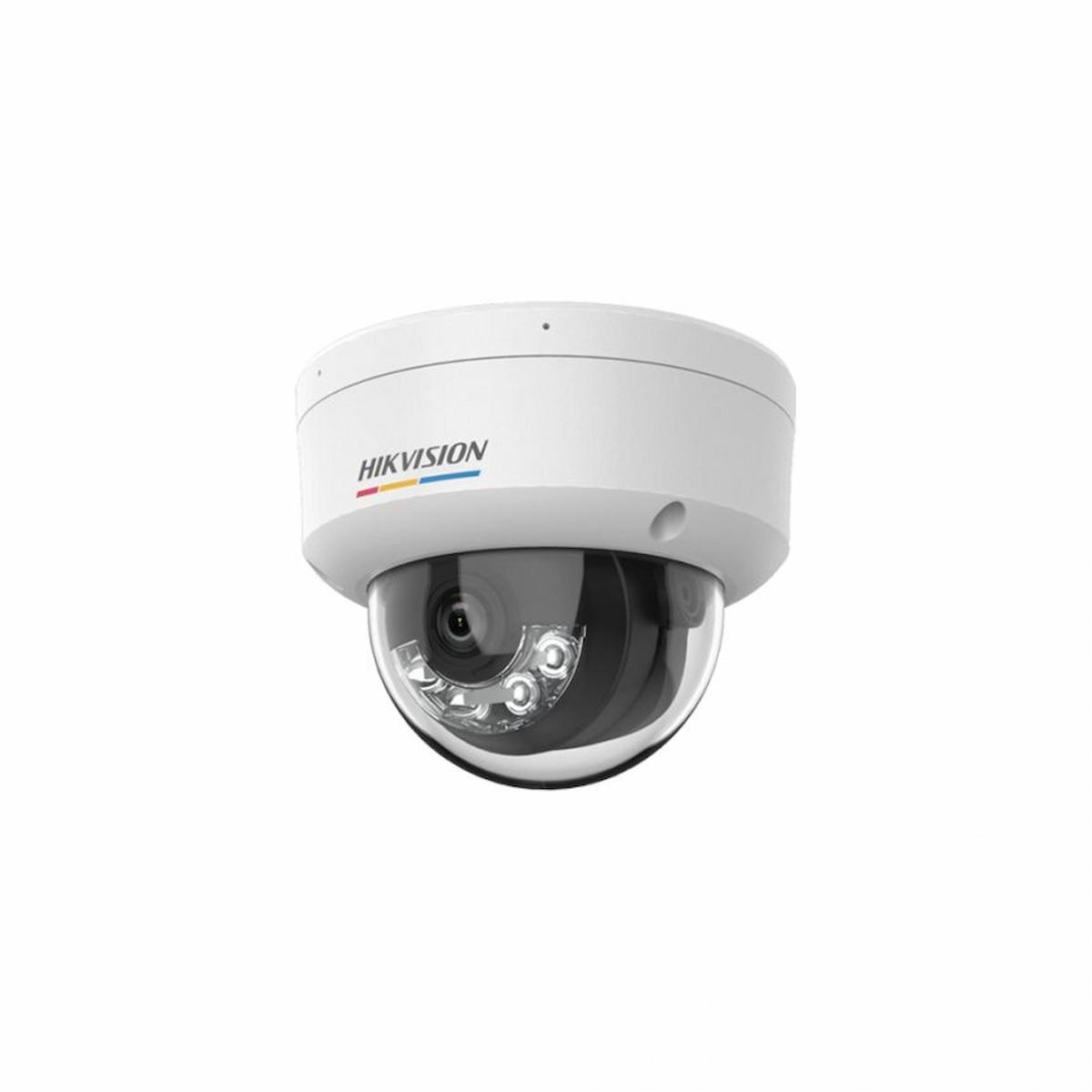

• Cámara Hikvision domo
• Sensor de imagenCMOS de escaneo progresivo de 1/3″
• Max. Resolución2560 × 1440
• Iluminación mínimaColor: 0,001 Lux @ (F1.0, AGC ENCENDIDO), NEGRO/NEGRO: 0 Lux con IR
• Tiempo de obturación1/3 s a 1/100.000 s
• Día y NocheFiltro de corte IR
• Ajuste de ánguloPan: 0° a 355°, inclinación: 0° a 75°, rotación: 0° a 355°

• Lente
• Tipo de objetivoObjetivo focal fijo, opcional de 2,8 mm y 4 mm
• Distancia focal y campo de visión

  2,8 mm, FOV horizontal 96°, FOV vertical 52°, FOV diagonal 114°

  4 mm, FOV horizontal 80°, FOV vertical 43°, FOV diagonal 93°

• Montura de objetivoM12
• Tipo de irisFijado
• AperturaF1.0

• DORI
• DORI

  2,8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m

  4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

• Iluminador
• Tipo de luz suplementariaIR, luz blanca
• Suplemento Gama de LuzHasta 30 m
• Luz Inteligente de SuplementosSí
• Longitud de onda IR850 millas náuticas

• Vídeo
• Main Stream

  50 Hz:

  20 fps (2560 × 1440)

  25 fps (1920 × 1080, 1280 × 720)

  60 Hz:

  20 fps (2560 × 1440)

  24 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

• Compresión de vídeo

  Corriente principal: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Tasa de bits de vídeo32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)1 fixed region for main stream

• Audio
• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
• SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image EnhancementBLC,HLC,3D DNR
• Privacy Mask4 programmable polygon privacy masks

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in MicrophoneYes,1 built-in microphone
• Reset Key-F: Yes

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageUpload to memory card (-F model supports) , trigger recording (-F model supports), upload to FTP,notify surveillance center,send email,trigger capture

• General
• Power

  12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 7.5 W

• Material

  Base: metal, cover: plastic

• DimensionØ121.5 mm × 97.6 mm (Ø4.78″ × 3.84″)
• Package Dimension150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″)
• WeightApprox. 550 g (1.2 lb.)
• With Package WeightApprox. 800 g (1.8 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionHeartbeat,anti-banding,mirror,password reset via email,password protection

• Approval
• EMC

  CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Número 7

• Seguridad

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Parte 1): 2010/IEC 60950-1: 2005

• Medio ambiente

  CE-RoHS: 2011/65/UE,

  WEEE: 2012/19/EU,

  Reach: Reglamento (CE) nº 1907/2006

• ProtecciónIP67: IEC 60529-2013,IK08: IEC 62262:2002
